Increased speed, installed power and mechanical improvements.
New set of shells and concaves brings less downtime.
Detailed reports and intelligent measurement of crushing operations.
Hydraulic separation and individual lifting of shells.
Addwash ADDWASH85 Series
50 - 70 mTPH
22.6
150
Addwash ADDWASH125 Series
70 - 105 mTPH
26.1
180
Addwash ADDWASH205 Series
110 - 180 mTPH
46
250

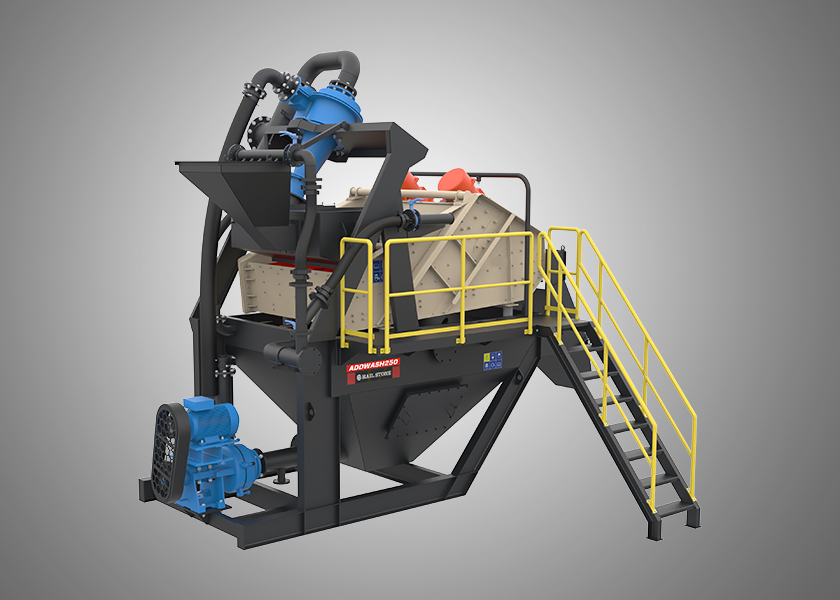

Addwash ADDWASH250 Series
150 - 200 mTPH
62.2
300
Addwash ADDWASH305 Series
250 - 300 mTPH
77
350
Model | ADDWASH85 | ADDWASH125 | ADDWASH205 | ADDWASH250 | ADDWASH305 | |
---|---|---|---|---|---|---|
Total power,kw (hp) | 22.6 | 26.1 | 46 | 62.2 | 77 | |
Water required, m3/hr | 150 | 180 | 250 | 300 | 350 | |
Capacity, mtph | 50 - 70 | 70 - 105 | 110 - 180 | 150 - 200 | 250 - 300 | |
Dewatering screen | Screening Size(L x W), mm (in) | 2400 x 1200 (96 x 48) | 2400 x 1800 (96 x 72) | 4000 x 2100 (160 x 84) | 3200 x 1500 (126 x 59.1) | 4000 x 2100 (160 x 84) |
Motor Power, kW (hp) | 7.6 | 7.6 | 16 | 8.6 | 16 | |
Rinser screen | Screening Size(L x W),mm (in) | - | - | - | 4000 x 1500 (160 x 59.1) | 4800 x 2100 (192 x 84) |
Motor Power, kW (hp) | - | - | - | 8.6 | 16 | |
Slurry pump size | Suction, in | 4 | 6 | 6 | 8 | 8 |
Discharge, in | 3 | 4 | 4 | 6 | 6 |
