Vibrating Screen

Features

features
Higher throughput

Increased speed, installed power and mechanical improvements.

01

features
Reduced downtime

New set of shells and concaves brings less downtime.

02

features
Advanced automation

Detailed reports and intelligent measurement of crushing operations.

03

features
Easy and safe maintenance

Hydraulic separation and individual lifting of shells.

04

Modals

VS400150-2D VS400150-2D

Stationary jaw crushers VS400150 2D-series

VS400150 2D

Screening Area m2

6

  • Number Of Decks

    2

  • Drive Power kW (hp)

    15kW (20hp)

VS400150 2D
VS400150-3D VS400150-3D

Stationary jaw crushers VS400150 3D-series

VS400150 3D

Screening Area m2

6

  • Number Of Decks

    3

  • Drive Power kW (hp)

    15kW (20hp)

VS400150 3D
VS400150-4D VS400150-4D

Stationary jaw crushers VS400150 2D-series

VS400150 4D

Screening Area m2

6

  • Number Of Decks

    4

  • Drive Power kW (hp)

    15kW (20hp)

VS400150 4D

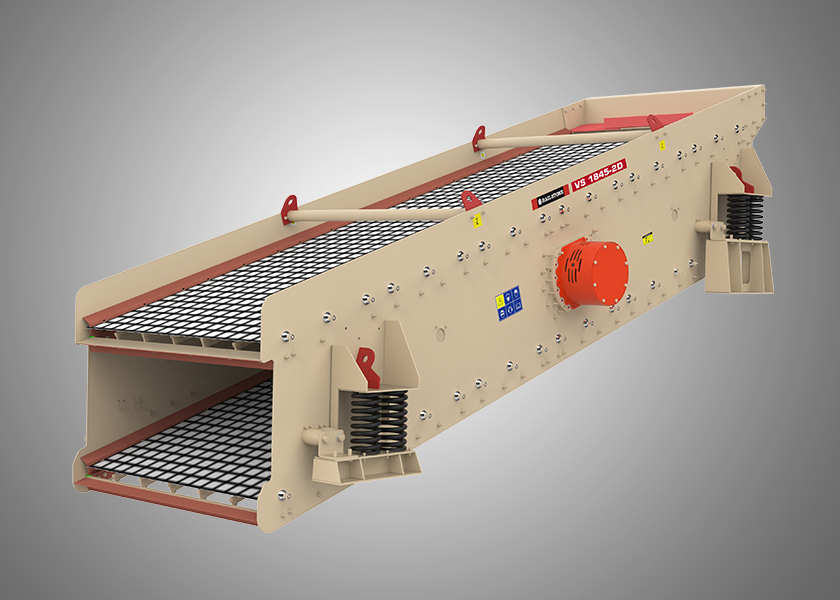

VS1845-2D VS1845-2D

Stationary jaw crushers VS1845 2D-series

VS1845 2D

Screening Area m2

8.3

  • Number Of Decks

    2

  • Drive Power kW (hp)

    15kW (20hp)

VS1845 2D

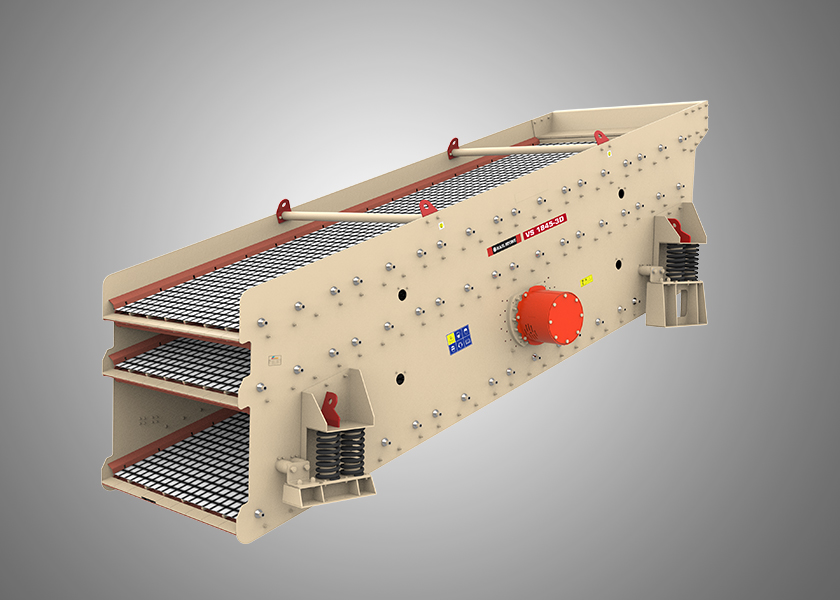

VS1845-3D VS1845-3D

Stationary jaw crushers VS1845 3D-series

VS1845 3D

Screening Area m2

6

  • Number Of Decks

    3

  • Drive Power kW (hp)

    15kW (20hp)

VS1845 3D

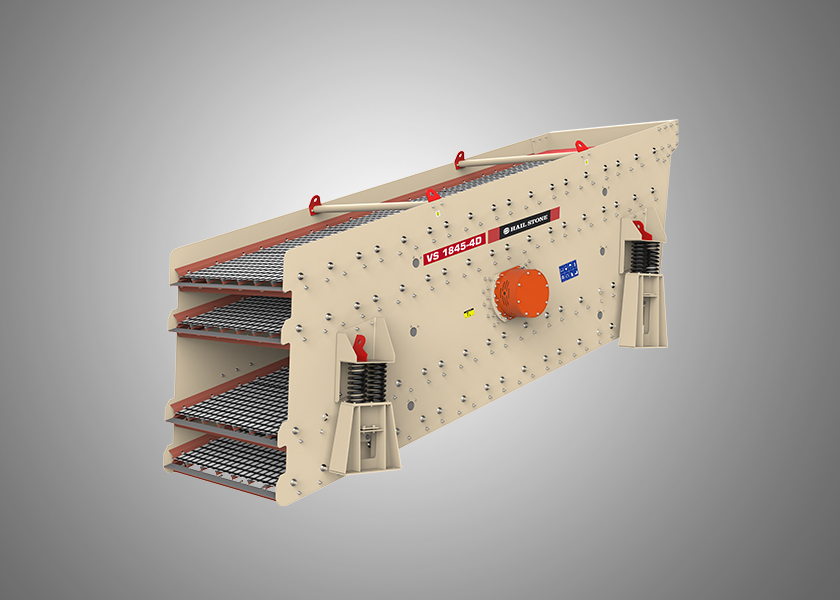

VS1845-4D VS1845-4D

Stationary jaw crushers VS1845 4D-series

VS1845 4D

"Screening Area m2"

6

  • Number Of Decks

    4

  • "Drive Power kW (hp)

    15kW (20hp)

VS1845 4D
VS1855-3D VS1855-3D

Stationary jaw crushers VS400150 2D-series

VS1855 3D

Screening Area m2

10.17

  • Number Of Decks

    3

  • Drive Power kW (hp)

    15kW (20hp)

VS1855 3D
VS1855-4D VS1855-4D

Stationary jaw crushers VS1855 4D-series

VS1855 4D

Screening Area m2

10.17

  • Number Of Decks

    4

  • "Drive Power kW (hp)

    22kW (20hp)

VS400150 2D
VS600200-2D VS600200-2D

Stationary jaw crushers VS600200 2D-series

VS600200 2D

Screening Area m2

12

  • Number Of Decks

    2

  • "Drive Power kW (hp)

    15kW (20hp)

VS400150 2D
VS600200-3D VS600200-3D

Stationary jaw crushers VS600200 3D-series

VS600200 3D

Screening Area m2

12

  • Number Of Decks

    3

  • Drive Power kW (hp)

    22kW (20hp)

VS400150 2D

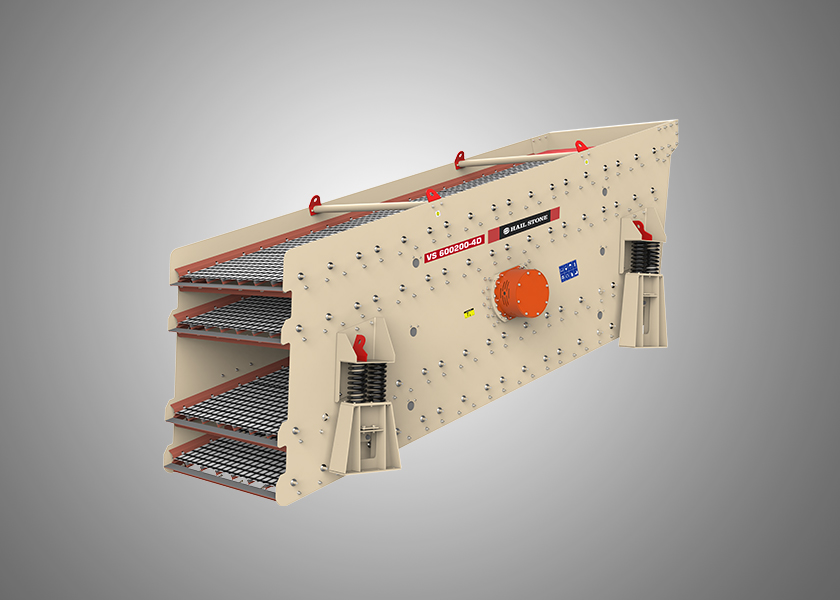

VS600200-4D VS600200-4D

Stationary jaw crushers VS600200 4D-series

VS600200 4D

Screening Area m2

12

  • Number Of Decks

    4

  • "Drive Power kW (hp)

    22kW (20hp)

VS400150 2D
VS610260-3D VS610260-3D

Stationary jaw crushers VS610260 3D-series

VS610260 3D

Screening Area m2

15.86

  • Number Of Decks

    3

  • Drive Power kW (hp)

    30kW (20hp)

VS610260 4D
VS610260-4D VS610260-4D

Stationary jaw crushers VS610260 4D-series

VS610260 4D

Screening Area m2"

15.86

  • Number Of Decks

    4

  • "Drive Power kW (hp)

    30kW (20hp)

VS400150 2D

Technical Specification

HF Series

Model Length mm Width mm Screening Area m2 Approxmate Weight Kg (lbs) Number Of Decks Drive Power kW (hp)
VS400150-2D 4000 1500 6 4051 (8931) 2 15 (20)
VS400150-3D 4560 (10053) 3 15 (20)
VS400150-4D 6294 (13876) 4 15 (20)
VS1845-2D 4500 1850 8.3 4400 (9700) 2 15 (20)
VS1845-3D 5220 (11508) 3 15 (20)
VS1845-4D 6240 (13757) 4 15 (20)
VS1855-3D 5500 1850 10.17 6350 (14000) 3 15 (20)
VS1855-4D 7560 (16667) 4 22 (30)
VS600200-2D 6000 2000 12 5161 (11378) 2 15 (20)
VS600200-3D 8015 (17670) 3 22 (30)
VS600200-4D 9320 (20547) 4 22 (30)
VS610260-3D 6100 2600 15.86 13000 (28660 ) 3 30 (40)
VS610260-4D 16000 (35274) 4 30 (40)
✖
