Increased speed, installed power and mechanical improvements.
New set of shells and concaves brings less downtime.
Detailed reports and intelligent measurement of crushing operations.
Hydraulic separation and individual lifting of shells.

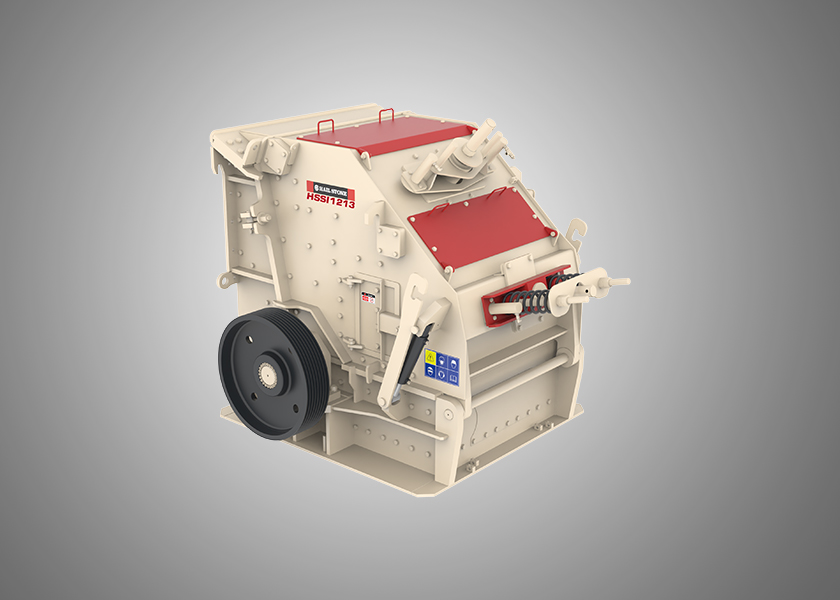

Stationary jaw crushers HSSI 1213-series
180 - 280 mTPH
400 (15.7)
200kw - 250kw (250hp - 350hp)
| Model | HSSI 1213 |
|---|---|
| Power, kw (hp) | 200 - 250 (250 - 350) |
| Capacity range, mtph | 180 - 280 |
| Dry weight, kg (lbs) | 14000 (30865) |
| Maximum feed size, mm (in) | 400 (15.7) |
| Feed opening (L x W), mm (in) | 1320 x 879 (52 x 34.6) |
| No. of blow bars | 4 |
| Application | Secondary/Tertiary |
