Increased speed, installed power and mechanical improvements.
New set of shells and concaves brings less downtime.
Detailed reports and intelligent measurement of crushing operations.
Hydraulic separation and individual lifting of shells.
Stationary Pan Feeder PFVM-series
1750
2 x 1.5
250 - 300
Stationary Pan Feeder PFVM-series
2200
2 x 2.29
300 - 350
Stationary Pan Feeder PFVM-series
2200
2 x 3.8
400 - 450
Stationary Pan Feeder PFVM-series
2000
2 x 3.8
500 - 550
Stationary Grizzly Feeder GFEM-eries
3200
2 x 3.8
250 - 300
Stationary Grizzly Feeder GFEM-eries
4200
2 x 5.5
350 - 400
Stationary Grizzly Feeder GFEM-eries
4500
2 x 7.5
500 - 550
Stationary Grizzly Feeder GFEM-eries
6100
1 x 30
550 - 600

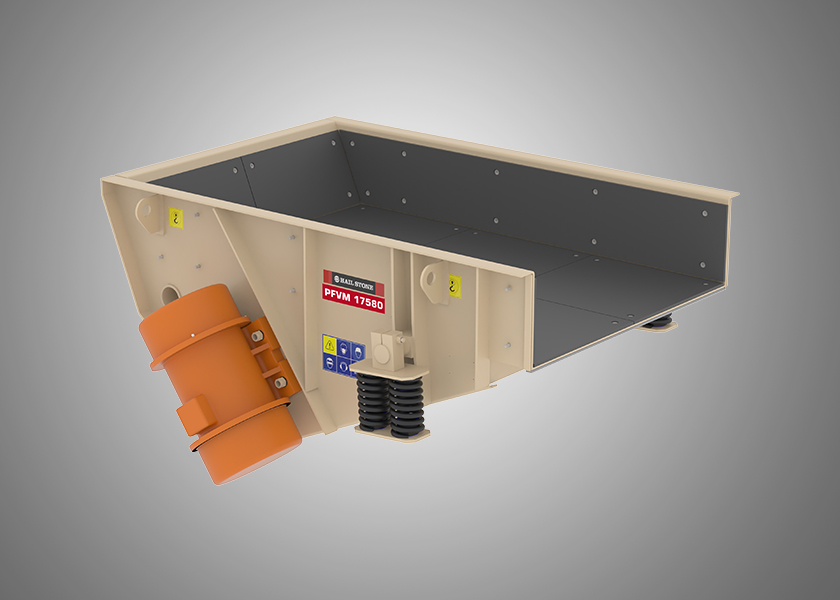

| Model | PFVM17580 | PFVM2208 | PFVM2210 | PFVM2012 |
|---|---|---|---|---|
| Effective length, mm | 1750 | 2200 | 2200 | 2000 |
| Effective width, mm | 800 | 800 | 1000 | 1250 |
| Power, kW(hp) | 2 x 1.5 | 2 x 2.29 | 2 x 3.8 | 2 x 3.8 |
| Capacity, mtph | 250 - 300 | 300 - 350 | 400 - 450 | 500 - 550 |
| Approximate weight, kg (lbs) | 1025 (2260) | 1145 (2524) | 1479 (3261) | 1729 (3812) |
| Top size of feed, mm | 200 | 200 | 200 | 300 |

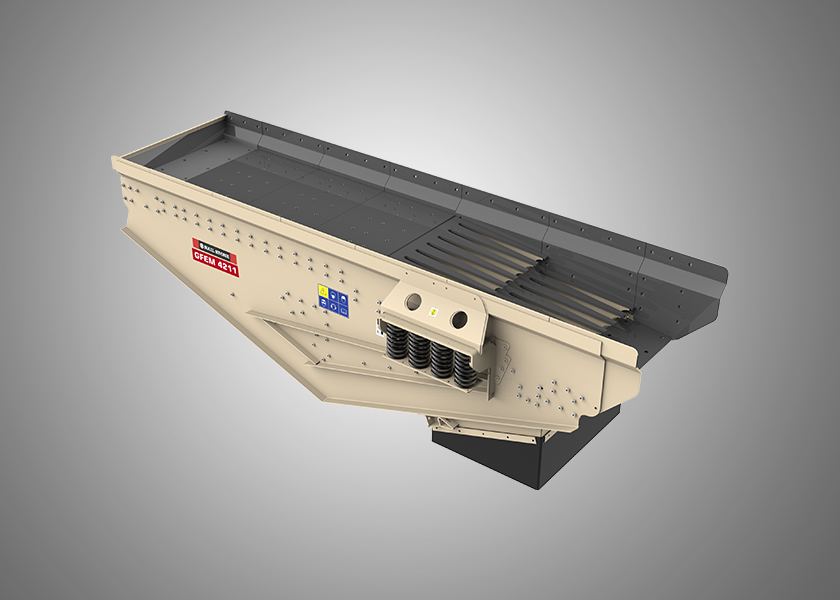

| Model | GFEM3209 | GFEM4211 | GFEM4513 | GF6113 |
|---|---|---|---|---|
| Effective length, mm | 3200 | 4200 | 4500 | 6100 |
| Effective width, mm | 900 | 1100 | 1300 | 1300 |
| Power, kW(hp) | 2 x 3.8 | 2 x 5.5 | 2 x 7.5 | 1 x 30 |
| Capacity, mtph | 250 - 300 | 350 - 400 | 500 - 550 | 550 - 600 |
| Approximate weight, kg (lbs) | 2750 (6063) | 4250 (9370) | 6278 (13840) | 8000 (17635) |
| Top size of feed, mm | 450 | 700 | 1100 | 1200 |
