Cone Crushers

Features

features
Higher throughput

Increased speed, installed power and mechanical improvements.

01

features
Reduced downtime

New set of shells and concaves brings less downtime.

02

features
Advanced automation

Detailed reports and intelligent measurement of crushing operations.

03

features
Easy and safe maintenance

Hydraulic separation and individual lifting of shells.

04

Modals

Cone Crushers HF Series

Hf 150 HF 150

Stationary cone crushers HF-150 Series

HF150

Nominal capacity

58 - 160 mTPH

  • Max. feed size

    160 (65/16)

  • Moto power

    75 kW - 110 kW (100 hp - 150 hp)

HF150

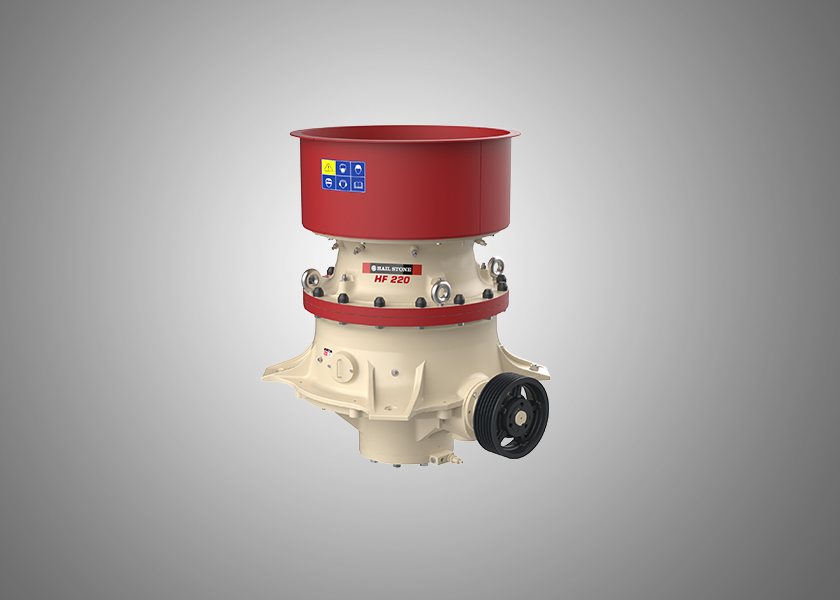

HF 220 HF 220

Stationary cone crushers HF-220 Series

HF220

Nominal capacity

70 - 260 mTPH

  • Max. feed size

    172 (619/25)

  • Moto power

    132 kW to 160 kW (180hp to 220 hp)

HF220
HF270 HF270

Stationary cone crushers HF-270 Series

HF270

Nominal capacity

70 - 280 mTPH

  • Max. feed size

    213 (782/5)

  • Moto power

    132 kW - 220 kW (175 hp - 300 hp)

HF270

Cone Crushers EC Series

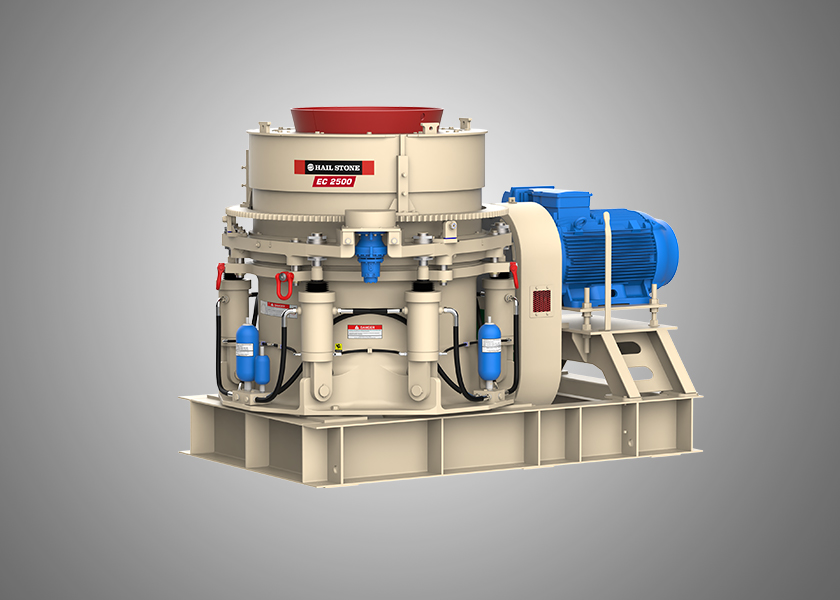

EC 2500 EC 2500

Stationary cone crushers HF-150 Series

EC2000

Nominal capacity

99 - 286 mTPH

  • Max. feed size

    190 (71/2)

  • Moto power

    160kW (220 hp)

EC2500
EC3000 EC3000

Stationary cone crushers EC-3000 Series

EC3000

Nominal capacity

90 - 400 mTPH

  • Max. feed size

    200 (77/8)

  • Moto power

    225 kW (300 hp)

EC3000
EC3500 EC3500

Stationary cone crushers EC-3500 Series

EC3500

Nominal capacity

127 - 484 mTPH

  • Max. feed size

    241 (91/2)

  • Moto power

    250 kW (330 hp)

EC3500
EC4000 EC4000

Stationary cone crushers EC-4000 Series

EC4000

Nominal capacity

135 - 555 mTPH

  • Max. feed size

    255(10)

  • Moto power

    315 kW (425 hp)

EC4000

Technical Specification

HF Series

Model HF150 HF220 HF270
Drive power, kw (hp) 75 - 110 (100 - 150) 132 - 160 (180 - 220) 132 - 220 (175 - 300)
Total weight, kg (lbs) 10520 (23143) 13500 (29765) 15800 (34833)
Stroke options, mm (in) 25,30 (1, 13/16) 18,22,28,36 (11/16, 7/8, 17/64, 113/32) 18,25,28,32,36,40 (11/16, 1, 17/64, 11/4, 113/32, 19/16)
Feed opening
Fine, mm (in) - - 90 (335/64)
Medium fine, mm (in) 95 (33/4) 90 (327/50) -
Coarse, mm (in) >160 (65/16) >172 (619/25) 213 (782/5)
Closed Side Setting
mm (In) 		Capacity (Mtph)
  HF150 HF220 HF270
8 ( 5/16) - - 70 - 90
10 (3/8) 58 - 95 70 - 90 80 - 130
15 (19/32) 65 - 123 77 - 99 105 - 175
20 (25/32) 84 - 135 100 - 110 120 - 230
25 (1) 105 - 147* 126 - 165 150 - 265
30 (1 3/16) 132 - 160* 144 - 205 165 - 280
35 (1 3/8) - 162 - 250 -
40 (1 9/16) - 175 - 260 -
200 (8) 400 - 520 390 - 550 430 - 645

EC Series

Model EC2500 EC3000 EC3500 EC4000
Maximum feed opening, mm (in) 190 (71/2) 200 (77/8) 241 (91/2) 255 (10)
Total weight, kg (lbs) 17000 (37480) 21500 (47400) 24000 (52911) 26500 (58423)
Drive power, kw (hp) 160 (220) 225 (300) 250 (330) 315 (425)
Closed Side Setting
mm (In) 		Capacity (Mtph)
  EC2500 EC3000 EC3500 EC4000
8 (5/16) - 90 - 130 - 135 - 175
10 (3/8) 99 - 143 105 - 150 127 - 154 155 - 210
13 (1/2) 132 - 176 130 - 185 165 - 204 195 - 265
16 (5/8) 149 - 204 155 - 230 198 - 242 235 - 315
19 (3/4) 165 - 215 180 - 250 220 - 264 260 - 345
22 (7/8) 176 - 231 190 - 260 242 - 286 285 - 375
25 (1) 187 - 253 210 - 290 253 - 308 300 - 400
32 (1 1/4) 204 - 264 220 - 310 275 - 352 310 - 440
38 (1 1/2) 220 - 286 240 - 350 330 - 418 360 - 500
45 (1 3/4) - 280 - 400 385 - 484 400 - 555
