Ball Valve
Ball valve is a quarter-turn valve that uses a rotating ball with a hole to control fluid flow. When the hole aligns with the flow path, the valve is open. A 90-degree turn of the ball blocks the flow, closing the valve. They are known for their durability, reliability, and ease of operation, making them suitable for various industrial applications. – Link the same from Home Page and put it in Product Page.
These valves feature a floating ball that is not fixed in place, providing reliable sealing when the valve is closed. Common in low-pressure systems and where high precision is required.
Special Features
- Fire-Safe Ball Valves: Designed to remain operational in the event of a fire, typically by using fire-resistant materials and additional sealing mechanisms.
Customization & Support
- For specific design configurations, materials, and assembly details, request contacting Canle Team and the General Assembly Drawing (GAD) ensures that you receive tailored solutions with precise technical documentation.
Special Application and Other Engineering Solutions
- Electrical / Pneumatic / Hydraulic Actuated Valves, Fabricated Valves, Extended Stem, Metal Seated, Jacketed & Locking Arrangement Valves.
- Critical Service Valves for Chlorine, Cryogenic, Oxygen and Steam etc..,
Single Piece Ball Valve
A one-piece ball valve is a compact valve design where the valve body and ball are formed as a single, unified piece. The ball is typically fixed within the valve body, with the stem extending from it to allow rotation for controlling the flow of fluids. These valves are ideal for applications requiring quick, reliable on/off control with minimal maintenance.
Perfect for applications where space, cost, and reliability are key considerations, the one-piece ball valve is an efficient solution for fluid control needs.
| Size | 15mm to 200mm (Full bore), 50 to 150mm (Regular Bore) |
| Pressure | 150# 300# |
| Material | CF8, CF8M, CF3, CF3M, CF8C, CN7M, CD4MCU,
CG8M, CG3M, CW12MW, CW3MWCUN, CW3MCUN CW6MC, WCB, WCC, LCB, LCC |
| Design | ISO 17292 (BS 5351) / API 608 / ANSI B16.34 |
| Face to Face | ANSI B 16.10 |
| End Connection |
ANSI B 16.5 / BS 10 / DIN
|
| Testing | API 598 / BS 6755 PART-1 |
| Fire Safe | API 607 - 7TH EDITION |
| Type | FULL BORE / REGULAR BORE |
| Seat | METAL / SOFT SEAT |
| Operation | LEVER, WORM GEAR, PNEUMATIC, ELECTRIC
ACTUATORS |
Single Piece Valve
Two Piece Ball Valve
A two-piece ball valve is a commonly used type of valve designed to regulate the flow of fluids, made up of two distinct sections: the valve body and the closure (or ball) assembly. This simple yet effective design allows for reliable on/off control in a wide range of industries and applications.
The two-piece ball valve is a versatile, reliable, and cost-effective choice for many industries, particularly where simple flow control is required. It is particularly well-suited for applications like water, steam, and oil flow control, and offers ease of maintenance with its modular design.
| Size | 15 - 300mm |
| Pressure | 150#, 300#, 600# |
| Material | CF8, CF8M, CF3, CF3M, CF8C, CN7M, CD4MCU,
CG8M, CG3M, CW12MW, CW3MWCUN, CW3MCUN CW6MC, WCB, WCC, LCB, LCC |
| Design | ISO 17292 (BS 5351) / API 608 / ANSI B16.34 |
| Face to Face | ANSI B 16.10 |
| End Connection |
ANSI B 16.5 / BS 10 / DIN
|
| Testing | API 598 / BS 6755 PART-1 |
| Fire Safe | API 607 - 7TH EDITION |
| Type | FULL BORE / REGULAR BORE |
| Seat | METAL / SOFT SEAT |
| Operation | LEVER, WORM GEAR, PNEUMATIC, ELECTRIC
ACTUATORS |
Two Piece Valve
Three Piece Ball Valve
A three-piece ball valve is a versatile and robust valve design that consists of three main components: the main body and two end caps (pipe connectors). This design provides a number of operational and maintenance advantages, particularly in applications requiring frequent cleaning or servicing.
- Enhanced Serviceability: Easy disassembly for maintenance and cleaning.
- Adaptability: Works well in various pipeline configurations with threaded, welded, or flanged connections.
- Durability: Can be designed to handle higher pressures.
| Size | 15 - 300mm |
| Pressure | 150#, 300#, 600# |
| Material | CF8, CF8M, CF3, CF3M, CF8C, CN7M, CD4MCU,
CG8M, CG3M, CW12MW, CW3MWCUN, CW3MCUN CW6MC, WCB, WCC, LCB, LCC |
| Design | ISO 17292 (BS 5351) / API 608 / ANSI B16.34 |
| Face to Face | ANSI B 16.10 |
| End Connection |
ANSI B 16.5 / BS 10 / DIN
|
| Testing | API 598 / BS 6755 PART-1 |
| Fire Safe | API 607 - 7TH EDITION |
| Type | FULL BORE / REGULAR BORE |
| Seat | METAL / SOFT SEAT |
| Operation | LEVER, WORM GEAR, PNEUMATIC, ELECTRIC
ACTUATORS |
Third Piece Valve
Single Piece Ball - Thread
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Sed vel neque id felis pharetra faucibus. Nullam vulputate velit at nisi bibendum, ac pulvinar nisi ullamcorper. Sed vel neque id felis pharetra faucibus.
| Size | 15 - 300mm |
| Pressure | 150# |
| Material | CF8, CF8M, CF3, CF3M, CF8C, CN7M, CD4MCU,CG8M
CG3M, WCB, WCC, LCB, LCC |
| Design | ISO 17292 (BS 5351) / API 608 / ANSI B16.34 |
| Face to Face | MFG. STANDARD |
| End Connection |
ANSI B1.20.1 / ANSI B 16.11 / ANSI B16.25
|
| Testing | API 598 / BS 6755 PART-1 |
| Fire Safe | API 607 - 7TH EDITION |
| Type | FULL BORE / REGULAR BORE |
| Seat | METAL / SOFT SEAT |
| Operation | LEVER, WORM GEAR, PNEUMATIC, ELECTRIC
ACTUATORS |
Single Piece - Thread
Three Piece – Threaded, Socket or Butt Weld.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Sed vel neque id felis pharetra faucibus. Nullam vulputate velit at nisi bibendum, ac pulvinar nisi ullamcorper. Sed vel neque id felis pharetra faucibus.
| Size | 15 - 50mm |
| Pressure | 150#, 300#, 600#, 800# |
| Material | A105, F304, F316, F-22, F-51, F-11, LF2
CF8, CF8M, CF3, CF3M, CF8C, CN7M, WCB, WCC |
| Design | ISO 17292 (BS 5351) / API 608 / ANSI B16.34 |
| Face to Face | MFG. STANDARD |
| End Connection |
ANSI B1.20.1 / ANSI B 16.11 / ANSI B16.25
|
| Testing | API 598 / BS 6755 PART-1 |
| Fire Safe | API 607 - 7TH EDITION |
| Type | FULL BORE / REGULAR BORE |
| Seat | METAL / SOFT SEAT |
| Operation | LEVER, WORM GEAR, PNEUMATIC, ELECTRIC
ACTUATORS |
Third Piece - Thread, Socket & Butt Weld
Multi Port Ball Valve
A Multi-Port Ball Valve is designed to control the flow of fluids or gases through multiple pathways, typically offering “L” or “T” ports for greater flexibility in directing flow. It allows for easy switching between different flow paths, making it ideal for complex systems where multiple connections need to be managed with a single valve.
This valve type is commonly used in applications that require compact flow control with multiple inlet or outlet options.
| Size | 15 - 300mm |
| Pressure | 150#, 300# |
| Material | CF8, CF8M, CF3, CF3M, CF8C, CN7M, CD4MCU, CG8M,
CG3M, WCB, WCC, LCB, LCC |
| Design | ISO 17292 (BS 5351) / API 608 / ANSI B16.34 |
| Face to Face | MFG. STANDARD |
| End Connection |
ANSI B 16.5 / BS 10 / DIN
|
| Testing | API 598 / BS 6755 PART-1 |
| Fire Safe | API 607 - 7TH EDITION |
| Type | THREE WAY / FOUR WAY |
| Port Type | "L" - PORT / "T" PORT |
| Seat | METAL / SOFT SEAT |
| Operation | LEVER, WORM GEAR, PNEUMATIC, ELECTRIC
ACTUATORS |
Multi Port Ball Valve

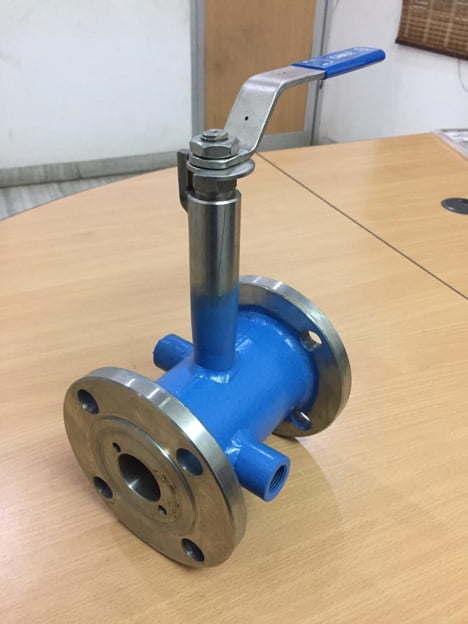

Jacketed Ball Valve
Jacketed ball valves are quarter-turn valves that incorporate a secondary chamber, or "jacket," around the main valve body. 1 This jacket allows for the circulation of a heating or cooling medium to maintain the temperature of the fluid flowing through the valve. 2
They are commonly used in industries like chemical processing, petrochemical, and food processing to handle viscous or temperature-sensitive fluids. 3
Jacketed ball valves are available in various configurations, including full-jacketed and half-jacketed designs, and can be used for both heating and cooling applications.
| Size | 15mm to 200mm Full bore |
| Pressure | 150# |
| Material | CF8, CF8M, CF3, CF3M, CF8C, CN7M, CD4MCU,
CG8M, CG3M, CW12MW, CW3MWCUN, CW3MCUN CW6MC, WCB, WCC, LCB, LCC |
| Design | ISO 17292 (BS 5351) / API 608 / ANSI B16.34 |
| Face to Face | ANSI B 16.10 |
| End Connection |
ANSI B 16.5 / BS 10 / DIN
|
| Testing | API 598 / BS 6755 PART-1 |
| Fire Safe | API 607 - 7TH EDITION |
| Type | FULL BORE / REGULAR BORE |
| Seat | METAL / SOFT SEAT |
| Operation | LEVER, WORM GEAR, PNEUMATIC, ELECTRIC
ACTUATORS |
